CAM Lock Gaskets and Seals
CAM Lock Gaskets and CAM Lock Seals
We provide robust and flexible CAM lock gaskets for purchase, relating to your specific needs and requirements. We understand that our customers will require CAM lock seals for a variety of purposes and we can provide you with professional advice and expert guidance to help choose the right style, type, and size of encapsulated CAM lock gasket that is right for your project and specific processes.
The cam and groove couplings allows for fast and easy connection and disconnection when working with a number of applications. It is suitable for all types of materials, from liquids to powders, vapours and granules.

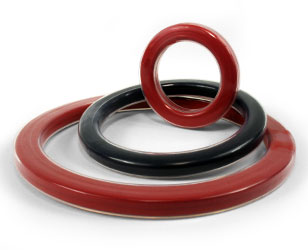

Our gaskets are available with either a silicone or Viton core and have been designed to provide a touch seal with which to withstand virtually any chemical or corrosive environment. The FEP encapsulation adds a secure seal that can hold at the highest of pressures and temperatures, and it has even been designed with ease of application and installation in mind.
The seals have been designed to follow strict regulatory instructions, ensuring that they can be used safely within the food industry, Petrochemical, Chemical as well as the Pharmaceutical Industry, where there is often high pressure, high temperatures and corrosive chemicals in play. With an elastomer core and FEP/PFA exterior, the seals are perfect for chemical resistance.
Our encapsulated CAM lock gasket has a non-stick finish, allowing for easier insertion and leak-free CAM lock seals that are reusable within your range of applications and processes.
Contact NES to discuss your needs today!
As one of the leading providers of CAM lock gaskets, we understand how important it is to provide a wide range of styles and sizes that suit your specific application. We have a range available that includes standard style, metal detectable and x-ray detectable, as well as FEP/PFA encapsulated. We also offer full range of non CAM lock seals and manway seals. Whatever your needs and the environment to be used in, we have the couplings to assist you.
Click here to contact us now.
NES' standard range of CAM Lock Gaskets and Seals. For bespoke sizes, please contact our NES Sales Team.
NB | OD x ID x Thickness | FEP/FKM | FEP/Silicone |
---|---|---|---|
1/2" | 26.59mm x 17.44mm x 4.00mm | NES3336 | NES3347 |
3/4" | 34.92mm x 22.22mm x 5.54mm | NES3337 | NES3348 |
1" | 39.67mm x 26.97mm x 6.45mm | NES3338 | NES3349 |
1.1/4" | 49.22mm x 34.52mm x 6.45mm | NES3339 | NES3350 |
1.1/2" | 55.55mm x 41.28mm x 6.45mm | NES3340 | NES3351 |
2" | 66.68mm x 50.80mm x 6.45mm | NES3341 | NES3352 |
2.1/2" | 79.37mm x 60.33mm x 6.45mm | NES3342 | NES3353 |
3" | 94.46mm x 76.20mm x 6.45mm | NES3343 | NES3354 |
4" | 123.83mm x 101.60mm x 6.45mm | NES3344 | NES3355 |
5" | 150.10mm x 123.95mm x 6.75mm | NES3345 | NES3356 |
6" | 179.00mm x 152.40mm x 6.45mm | NES3346 | NES3357 |
