Astra Seals®

ASTRA SEALS®

ASTRA SEAL® IS A UNIQUE EXTREME TEMPERATURE AND PRESSURE SEALING SOLUTION DEVELOPED BY NES - THERE IS SIMPLY NO BETTER SEAL FOR CRYOGENIC APPLICATIONS.

Created by an Aerospace Engineer to combat the harsh environments associated with liquid oxygen and the problems associated in sealing other cold media, such as liquid nitrogen and hydrogen, the Astra Seal® copes perfectly with the extreme low temperatures which make most O Rings brittle, which in turn leads to failure.

Extended rigorous testing in harsh environments has shown that NES Astra Seal® outperforms FFKM for compression set.

Astra Seals Compression Set Table

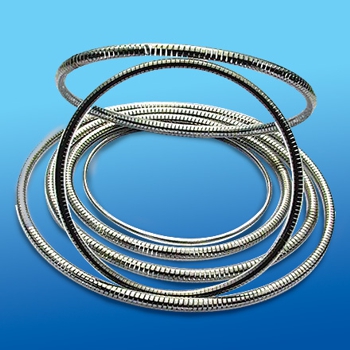

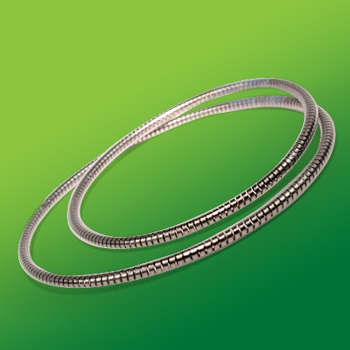

Comprising 302 stainless flat wound ribbon springs encapsulated in either a FEP or PFA Teflon™ jacket to form an O Ring, NESAstra Seals® span a temperature range from -250˚C to +260˚C (-420F to +500F).

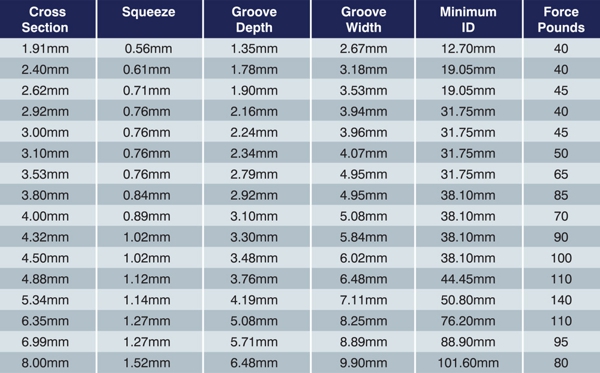

Astra Seal - Size Table

NES Astra Seal® has been successfully used in several space shuttle/rocket launches and a multitude of other demanding applications by organisations such as Boeing, NASA and Lockheed.

WANT TO KNOW MORE ABOUT OUR ASTRA SEALS®?

Why not contact us to discover how the Astra Seal® can cope with your harsh environment application? Contact us now >

Teflon™ is a trademark of The Chemours Company FC, LLC used under licence by Integrated Polymer Solutions.
